Request for ASI Native Driver Development

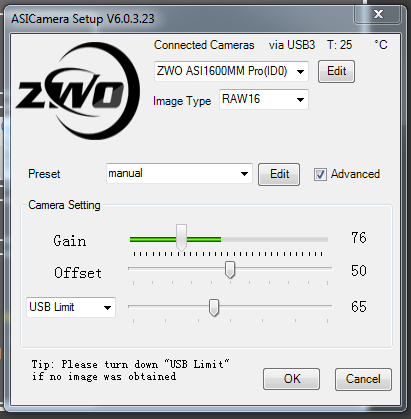

Hello Users, i need a screenshot of ASI ASCOM Driver Setting of your ASI Camera, like this attached, with Advanced flag active.

I need to finish develop the ASI Native driver for Voyager.

MiaASI

Many thanks to who want to help me.

All the best
LO

Thanks for working on this, Leo.

My higher-gain setting that I use for narrowband imaging is:
ZWO%20camera%20settings%20unity

And my lower (roughly half-unity) gain setting that I use for LRGB imaging is:
ZWO%20camera%20settings

Hope all is well with you!

Glenn

Thanks Gleen

All the best
Leo

This is wonderful news! Thanks, Glenn.

Thank YOU, Leo.

1 Like

Hi Leo,

I use Gain settings from 78 up to 300 and offsets from 10 up to 30. USB set to 40. Can post screenshots, just let me know.

Cameras are ASI1600MM and ASI183MM.

I don’t use presets as I reverted the driver and that version does not have them.

Many thanks
Robert

Thanks.

Robert if you can send screenshot of each camera is helpful.
Voyager native driver have preset management with standard 4 plus 1 manual and 8 user mode.

Attached the configuration manager for ASI in Voyager:

All the best
LO

2 Likes

That looks amazing. Thank you, Leo.

Kind regards,

Glenn

1 Like

That’s looking great Leo.

Here is a picture of my setup screen:

ASI-Setup

I use various gains/offsets to suite the conditions, even up to gain 300, after sky analysis. Other than the gain/offset values there is no difference between either camera on the Setup window.

Given that there are so many user defined presets available I ‘might’ start using them when upgrade to a later driver.

What exactly are you after ?

Kind Regards
Robert

I just need to see how is the configuration of windows ASCOM driver based on different kind of ASI camera.
I have an ASI071MC Pro … better to see more setting. Create a native driver based on API is really difficult because producer can have different API to use based on camera model.

All the best
LO

Sounds reasonable…

Will see if can get any more examples.

Robert

ASI294-Setup

Hope that helps
Robert

Leo, here’s the driver setup for my ASI1600MM-Pro. Hope this helps.

Eric

zwovoyager
